Creaform Handy Scan Black Elite
Professional Metrology-grade 3d Scanners
When accuracy meets versatility and portability
The HandySCAN 3D™ line-up is the reference in portable metrology‑grade 3D scanner. Optimized to meet the needs of design, manufacturing and metrology professionals, the BLACK Series provides the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere.
This fast and versatile patented handheld 3D scanner is easy-to-use and generates highly accurate and repeatable results—even in difficult environments and with complex surfaces.
Accuracy of
0.025 mm
ISO 17025
Large scanning area
Scan-to-mesh in seconds
Worldwide
Support
Patented
Technology
Accurate, Reliable & High-Resolution 3D Measurements

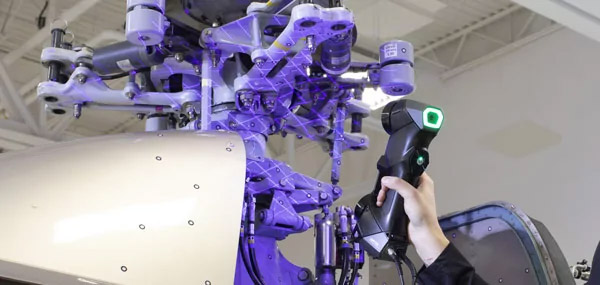

The HandySCAN 3D|BLACK Series delivers accurate, high-resolution and repeatable results, regardless of the measurement setup quality and no matter the user experience. Featuring dynamic referencing, both the scanner and part can move during measurement and still provide an accurate and high‑quality scan.
Accuracy
0.025 mm (0.0009 in)
0.012 mm (0.0005 in) with Limited Edition
Volumetric accuracy
0.020 + 0.040 mm/m (0.0008 in + 0.0005 in/ft)
0.012 mm + 0.020mm/m (0.0005 in + 0.0002 in/ft) with Limited Edition
Reliable acceptance test
Based on VDI/VDE 2634 part 3 standard
ISO 17025 accredited laboratory
High resolution for fine details
Integrated photogrammetry
High accuracy on large measurements with volumetric accuracy optimization
Portability

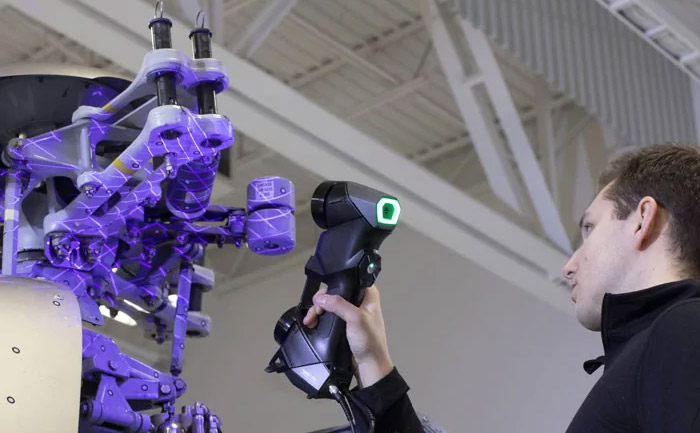

This handheld 3D scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance.
Lightweight
0.94 kg (2.1 lb)
Self-positioning with dynamic referencing
Fits into a suitcase
Take it anywhere you need
Faster 3D Scanning Process
The HandySCAN 3D|BLACK Series scanners features multiple laser crosses and an automatic mesh generation, enabling a faster workflow from the set-up to the scan and then to the file!
Ready-to-use files
High measurement rate
Up to 1,300,000 measurements/s
Large scanning area of 11 laser crosses
Quick setup
Up-and-running in less than 2 minutes
Technical Specifications
A brief look at technical specifications of this innovative technology that enables TRUaccuracy, TRUsimplicity, TRUportability, and speed for your metrology-grade applications.
Accuracy
0.025 mm
(0.0009 in)
0.012 mm (0.0005 in) with Limited Edition
Volumetric Accuracy
0.020 mm + 0.040 mm/m
(0.0008 in + 0.0005 in/ft)
0.012 mm + 0.020mm/m (0.0005 in + 0.0002 in/ft) with Limited Edition
Measurement Resolution
0.025 mm
(0.0009 in)
Measurement Rate
1,300,000
measurements/s
Part size range (recommended)
0.05 – 4 m
(0.15 –13 ft)
| HandySCAN BLACK™ | HandySCAN BLACK™|Elite | |
|---|---|---|
| Accuracy(1) | 0.035 mm (0.0014 in) |
0.025 mm (0.0009 in) 0.012 mm (0.0005 in) with Limited Edition (5) |
| Volumetric accuracy(2) (based on part size) |
0.020 mm + 0.060 mm/m (0.0008 in + 0.0007 in/ft) |
0.020 mm + 0.040 mm/m (0.0008 in + 0.0005 in/ft) 0.012 mm + 0.020mm/m (0.0005 in + 0.0002 in/ft) with Limited Edition (5) |
| Volumetric accuracy with MaxSHOT Next™ | Elite(3) | 0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft) |
|
| Measurement resolution | 0.025 mm (0.0009 in) |
|
| Mesh resolution | 0.100 mm (0.0039 in) |
|
| Measurement rate | 800,000 measurements/s | 1,300,000 measurements/s |
| Light source | 7 blue laser crosses | 11 blue laser crosses (+ 1 extra line) |
| Laser class | 2M (eye-safe) |
|
| Scanning area | 310 x 350 mm (12.2 x 13.8 in) |
|
| Stand-off distance | 300 mm (11.8 in) |
|
| Depth of field | 250 mm (9.8 in) |
|
| Part size range (recommended) | 0.05–4 m (0.15–13 ft) |
|

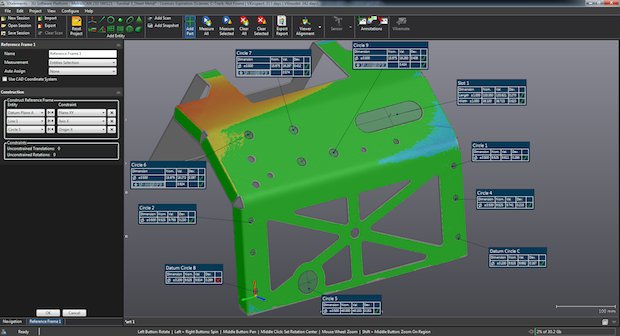

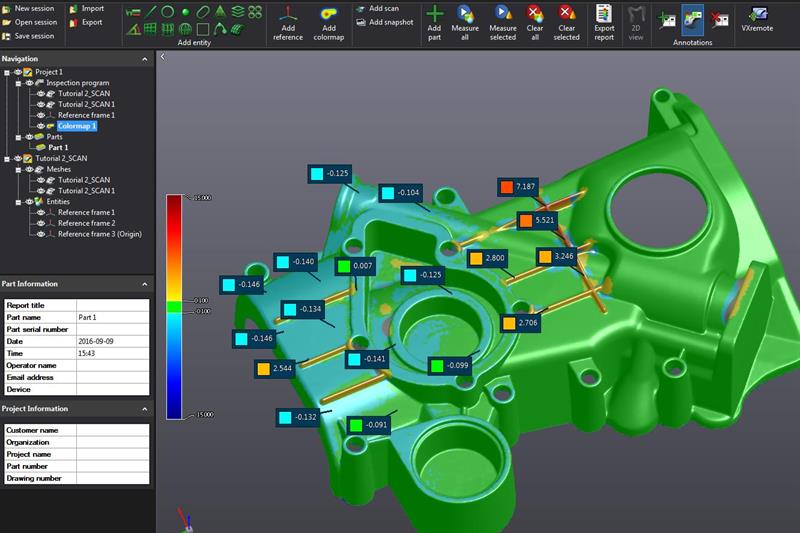

| Software | VXelements | |
| Output formats | .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf | |
| Compatible software4 | 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT) | |
| Weight | 0.94 kg (2.1 lb) |
|
| Dimensions (LxWxH) |
79 x 142 x 288 mm (3.1 x 5.6 x 11.3 in) |
|
| Connection standard | 1 X USB 3.0 | |
| Operating temperature range | 5-40 °C (41-104 °F) |
|
| Operating humidity range (non-condensing) |
10-90% | |
| Certifications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE | |
| Patents | CA 2,600,926, CN 200680014069.3, US 7,912,673, CA 2,656,163, EP (FR, UK, DE) 1,877,726, AU 2006222458, US 8,032,327, JP 4,871,352, US 8,140,295, EP (FR, UK, DE) 2,278,271, EP (FR, UK, DE) 2,230,482, IN 266,573, US 7,487,063, CA 2,529,044, EP (FR, UK, DE) 3,102,908, US 15/114,563, CN 201580007340X | |
