Creaform MetraSCAN 750
Discover the fastest and most accurate 3D scanner and portable CMM for shop floor environments.
Speed and accuracy combined with versatility

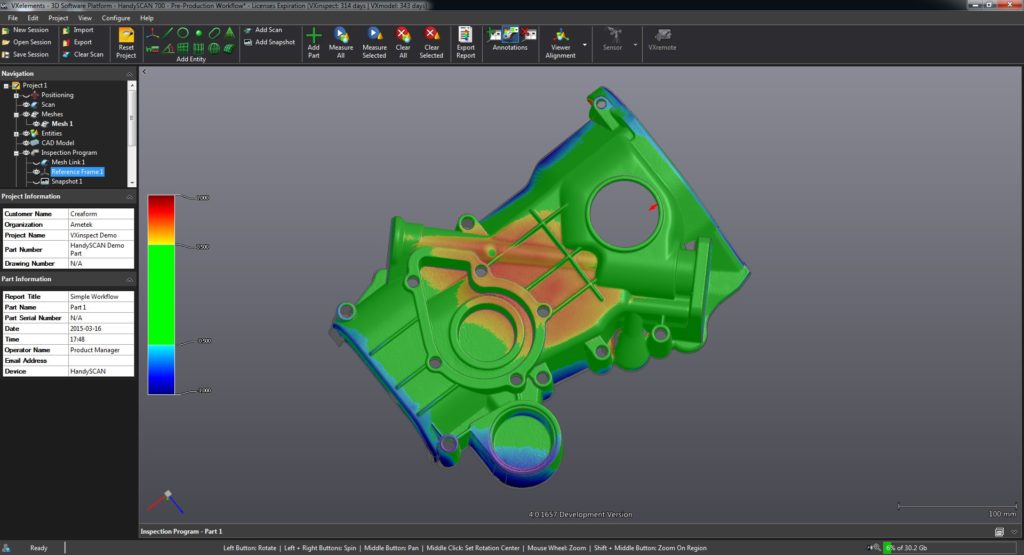

The MetraSCAN 3D optical CMM scanner line-up is specifically designed for manufacturing and metrology professionals who do not want to compromise on quality or efficiency. It can withstand any production environment, including shop floor vibrations, part movements and environmental instability—all while accelerating 3D measurement workflows. This optical CMM scanner has been engineered to perform highly accurate and repeatable metrology-grade measurements and 3D geometrical surface inspections.

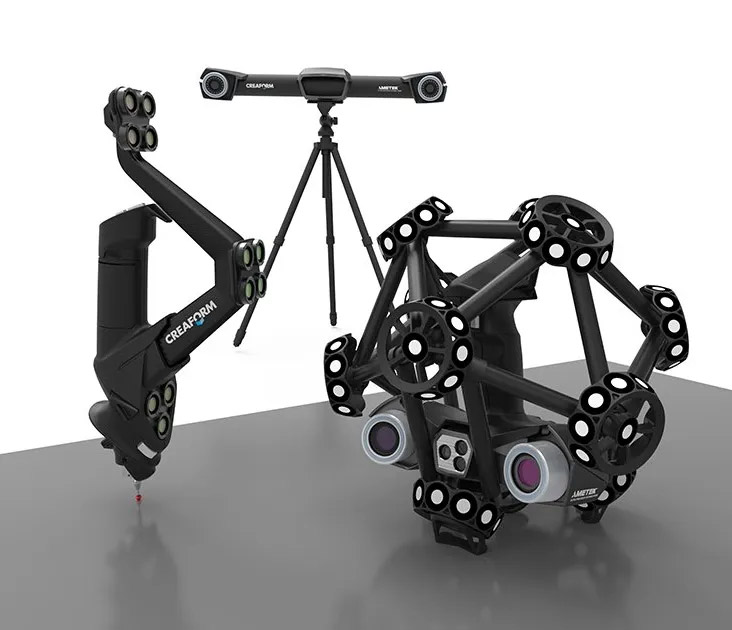

When paired with the HandyPROBE, Creaform’s handheld optical coordinate measuring machine (PCMM) with probing capabilities, users can also harness the power of both 3D scanning and probing for complete, end-to-end inspection processes.
Accuracy of
0.025 mm
Certified
ISO 17025
Patented
Technology
Worldwide
Support

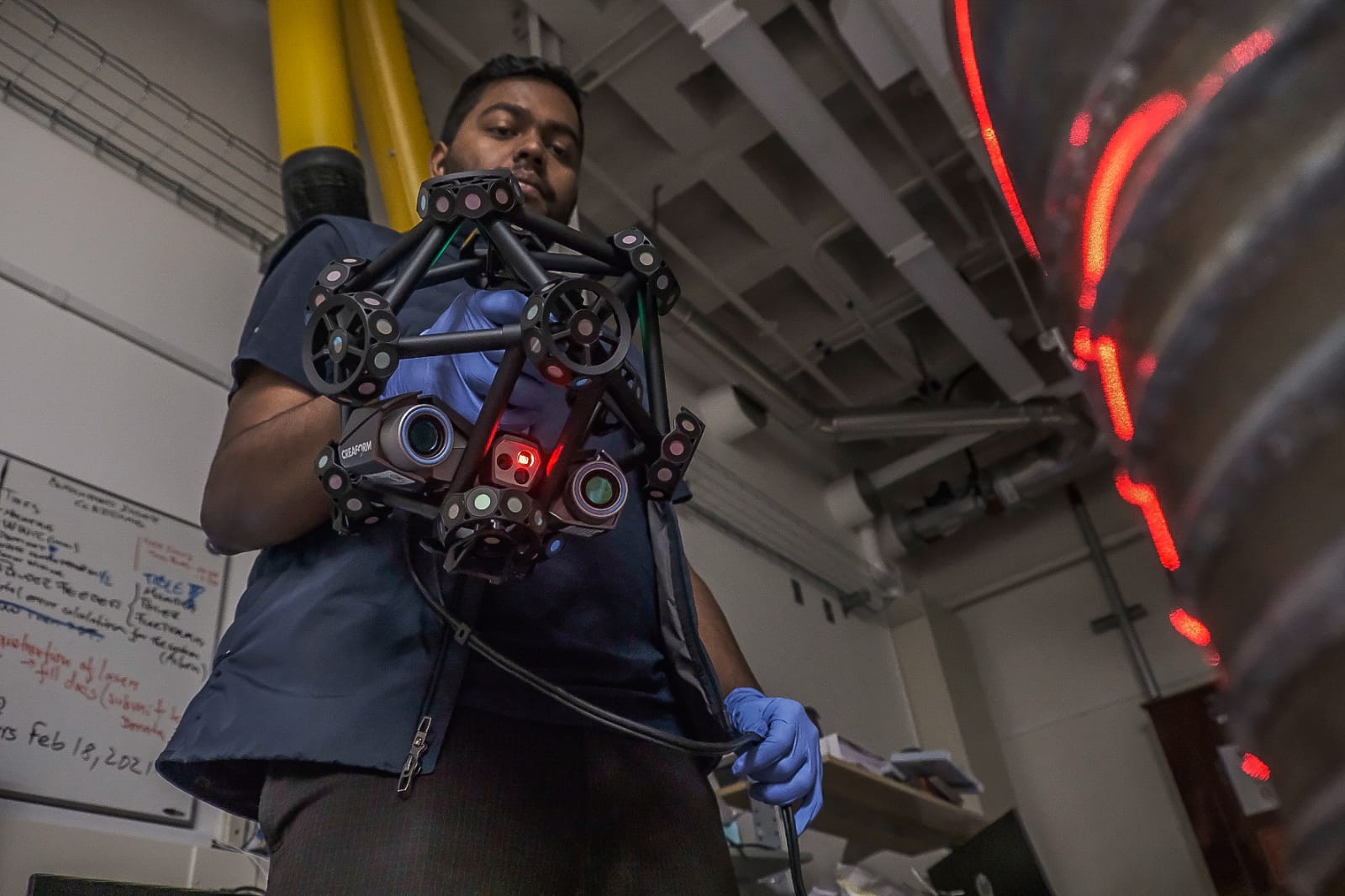

Faster 3D scanning
The MetraSCAN 3D features 15 laser crosses and a high measurement rate to accelerate 3D scanning processes. Thanks to quick setup and onboarding, real-time scans and ready-to-use files, your 3D scanning workflow will never have been faster.
High measurement rate
1,800,000 measurements/second
Large scanning area for all types of parts
15 laser crosses
Ultra-quick setup
No warm-up time; users can be up-and-running in less than 5 minutes
Impressive Shop Floor Accuracy

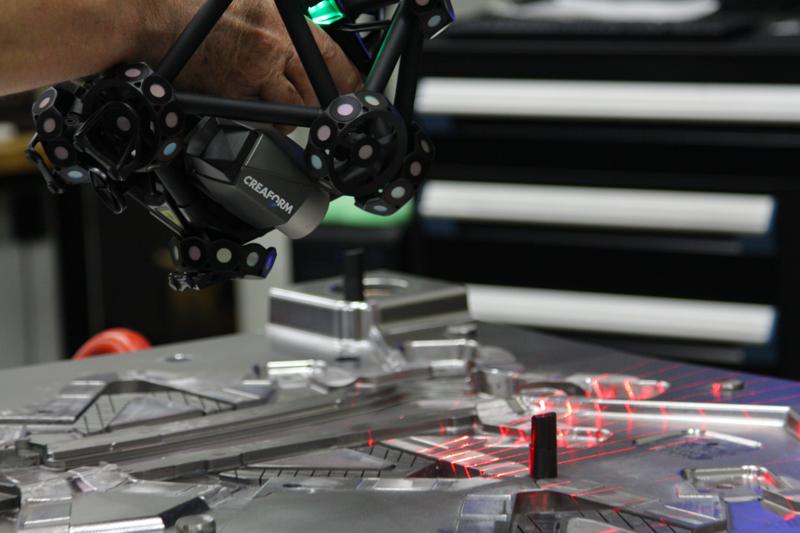

Free from any rigid measurement setup requirements, the MetraSCAN 3D is designed specifically for use on shop floors. It delivers accurate results, regardless of the measurement setup quality and user experience level. Thanks to the C-TrackTM optical tracker that enables dynamic referencing, the scanner, the part and the optical tracker can move during inspection and still provide accurate measurements.
Accuracy
0.056 mm
Volumetric Accuracy
0.080 mm
Reliable acceptance tests
Based on VDI/VDE 2634 Part 3 standard
ISO 17025 accredited laboratory
Shop floor accuracy with dynamic referencing
Measurement accuracy insensitive to environmental instabilities
High resolution
Measures all types of complex and highly detailed parts
Unmatched Versatility
Highly versatile, the MetraSCAN 3D can be used to scan various part sizes and surface finishes in real time—all with the same device. With its extendable measurement volume, parts of any shape, complexity, and geometry can be measured easily without loss in accuracy or requiring leapfrog.
Blue laser technology
Ideal for shiny and reflective surfaces
Large and easily extendable measurement volume
Wider than other portable CMMs
No leapfrog required
Optional HandyPROBE
Combination of both 3D scanning and probing
No targets required
Technical Specifications
MetraSCAN 3D’s innovative technology enables unprecedented accuracy, simplicity, portability, speed and efficiency for 3D inspections in your production environment. 3D measurements of a variety of complex parts, sizes, materials and finishes has never been this easy.
Accuracy
0.056 mm
Volumetric Accuracy
0.080 mm
Measurement Resolution
0.050 mm
Measurement Rate
4,80,000
measurements/s
Part size range (recommended)
0.2–6 m
(0.7–20 ft)
| MetraSCAN 750™ | |||
|---|---|---|---|
| Accuracy(1) | Up to 0.056 mm | ||
| Volumetric accuracy(2) 9.1 m3 (320 ft3) |
0.080 mm | ||
| Volumetric accuracy(2) 16.6 m3 (586 ft3) |
0.86 mm | ||
| Volumetric accuracy with MaxSHOT Next™|Elite(3) | 0.060 mm + 0.015 mm/m (0.0024 in + 0.00018 in/ft) |
||
| Probing accuracy with HandyPROBE Next (4) | 0.030 mm | ||
| Measurement resolution | 0.100 mm | ||
| Mesh resolution | 0.200 mm | ||
| Measurement rate | 4,80,000 measurements/s | ||
| Light source | 7 red laser crosses | ||
| Laser class | 2M (eye-safe) |
||
| Scanning area | 275 x 250 mm | ||
| Stand-off distance | 300 mm | ||
| Depth of field | 200 mm | ||
| Part size range (recommended) | 0.2–6 m (0.7–20 ft) | ||
| Software | VXelements | ||
| Output formats | .dae, .fbx, .ma, .obj, .stl, .txt, .wrl, .x3d, .zpr, .3mf | ||
| Compatible software(5) | 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT) | ||
| Weight | Scanner: 1.38 kg (3.0 lb) Probe: 0.5 kg (1.1 lb) C-Track: 5.7 kg (12.5 lb) |
||
| Dimensions (LxWxH) |
Scanner: 289 x 235 x 296 mm (11.4 x 9.3 x 11.7 in) Probe: 68 x 157 x 340 mm (2.7 x 6.2 x 13.4 in) C-Track: 1031 x 181 x 148 mm (40.6 x 7.1 x 5.8 in) |
||
| Operating temperature range | 5-40 °C (41-104 °F) |
||
| Operating humidity range (non-condensing) |
10-90% | ||
| Certifications | EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE | ||
| Patents | FR 2,838,198, EP (FR, UK, DE, IT) 1,492,995, US 7,487,063, CA 2,529,044 | ||
